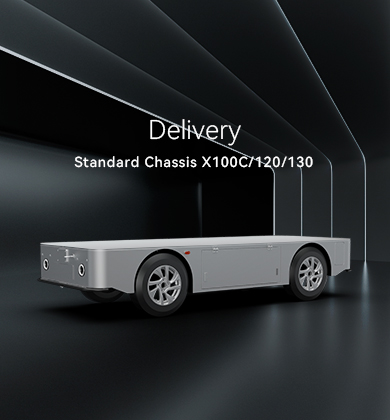

X100C

Function

Autonomous patrol Intelligent policing

Technical Specification

Catalog	X100C	X120	X130
Long(mm)	2158	3015	3600
Wide(mm)	960	1200	1300
High(mm)	560	580	685
Wheelbase	1250	1700	2000
Equipment weight(kg)	400	580	710
Maximum load weight(kg)	1000	1500~3000	1800~3000
Mileage(km)	100	150	150
Maximum Climbing Degree with Full Load	20	20	20
Top speed on flat roads(km/h)	40	40	40
Minimum Turning Radius(m)	2.8	3.9	4.6
Ground clearance(mm)	130	165	165
Wading Depth(mm)	Water depth 100m speed 15km/h	Water depth100mm speed 15km/h	Water depth100mm speed 15km/h
Temperature（℃）	-25~55	-25~55	-25~55
Waterproof	IP55	IP55	IP55
Voltage(V)	60	60	96
Charging mode	Standard mode charging	Standard mode charging	Standard mode charging
Drive motor (KW)	5	7.5	10
Brake system	Front and rear disc + hydraulic brake	Front and rear disc + hydraulic brake	Front and rear disc + hydraulic brake
Parking system	EPB Electronic parking	EPB Electronic parking	EPB Electronic parking
Suspension system	Front and rear multi-link + integral axle	Front MacPherson/rear leaf spring+rear integral axle	Front and rear multi-link + integral axle
Power supply system	12VDCDC（24V optional）	12VDCDC（24V optional）	12VDCDC（24V optional）
Drive-by-wire system	Standard CAN communication	Standard CAN communication	Standard CAN communication
Drive control	Support throttle control/speed control/acceleration control	Support throttle control/speed control/acceleration control	Support throttle control/speed control/acceleration control
Protection strategy	Component/system/vehicle level fault diagnosis/protection	Component/system/vehicle level fault diagnosis/protection	Component/system/vehicle level fault diagnosis/protection
OTA function	Component F0TA	Component F0TA	Component F0TA
